Multifunction Display – Explanation and Use

VW’s Multifunction Display (or “Driver Information Display“) is where you can see everything your VW has to tell you about its condition.

Your VW Is Saying Something

Think of the Multifunction Display as a collection of messages about warnings (seldom) or information (always). It’s not where you adjust any settings, that’s for the Infotainment system, but rather where you can quickly see what’s going on in your VW.

You page through them using the controls on the steering wheel. See below:

Use the Left Page/Right Page button circled in blue above to cycle through the five Parent pages. Use the up/down button circled in orange above to move through the Child pages within any Parent page.

In some cases in Driving Data, the information available to display is more than the Parent/Child hierarchy can show, so Grandchild pages become available. Grandchild pages are cycled by pressing the OK button, circled in green in the illustration above.

Here are the five top-level Multifunction Display items (Parents), in order:

Driving Data

Driving Data is the most complex but the most useful of the Multifunction Display pages. It holds information like fuel economy (MPG), average speed, distance travelled, driving time, oil temperature, current speed, and more.

It has 9 child pages, and 4 of those have grandchildren. Here’s a dedicated post on Driving Data’s children and grandchildren.

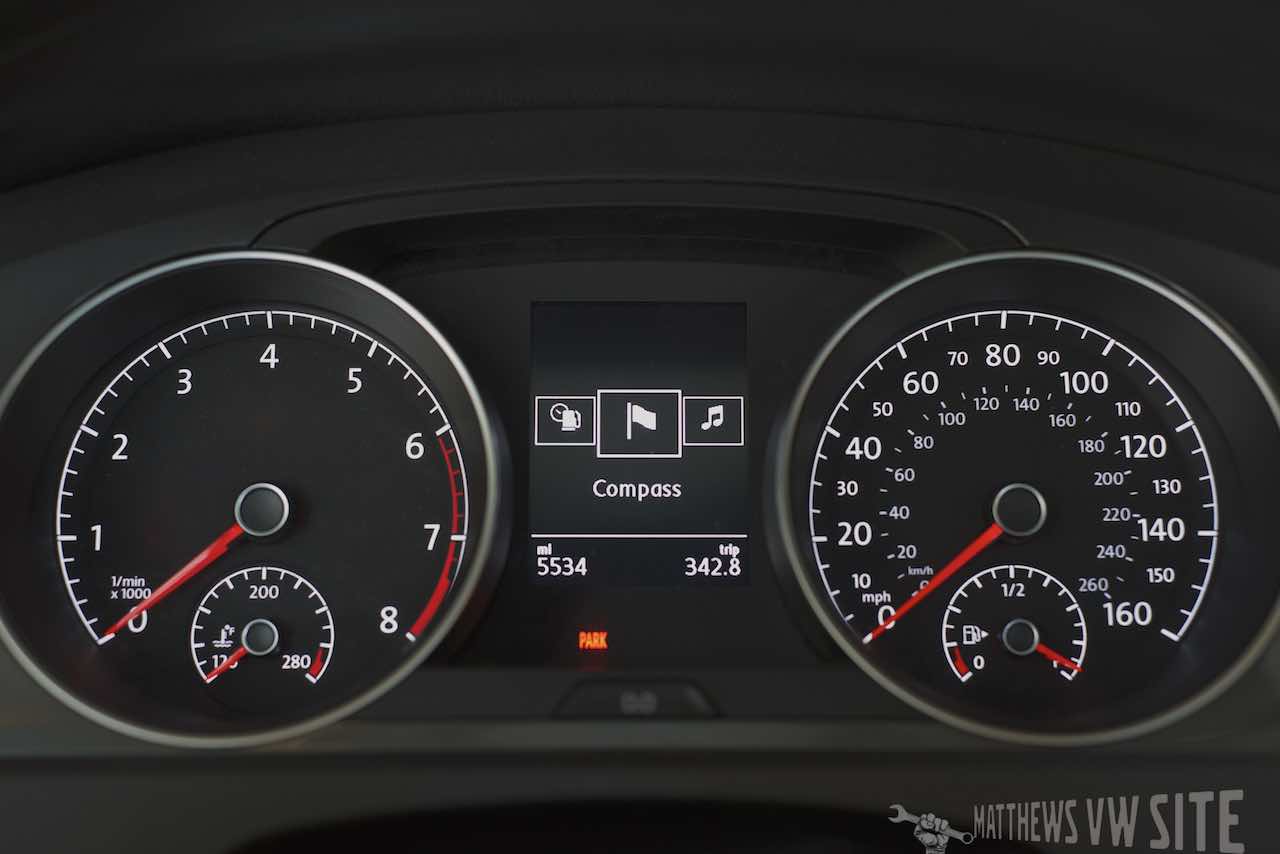

Navigation/Compass

Information displays for the navigation system (if equipped). When route guidance is active, turn arrows and proximity bars similar to the symbols shown in the navigation system are displayed.

If navigation is not equipped, it shows a 3D compass with the car image pointed in whatever direction it’s currently facing.

Audio

You guessed it! Audio page shows… what’s playing. How did you know?! Station display or station list in radio mode.

Telephone

Information about the connected telephone.

Vehicle Status

Current warning and information messages.

This menu item only appears when warning or information messages are available. We’ve never seen any messages in it in the 2017 Alltrack test-ship. Zero, none, nada.

…And Those are the Pages of the Multifunction Display

That’s the Driving Information Display, from a “10,000 foot view”. See the very important and informative Driving Data explanation. Driving Data has more information than all the other multifunction display pages combined, so it deserves its own post.
